Will it work with your system?
Works well with
- Phone control and scheduling
- Heat pump systems
Check first if you have
- Walls without a C wire, unless you add one
- Line-voltage baseboard heat
- Millivolt gas heaters
What it controls
The Vine TJ-560-3 Smart Thermostat is a smart Wi-Fi thermostat. Systems, per the maker: compatible with 90% of 24V AC systems, including Conventional 2H/2C(Gas, Oil, Electric, Boiler).
On power, its maker says it needs a C wire (the listing: "A common wire (C-wire) is required for all vine thermostats"). What a C wire does.
The maker states heat pump support ("Heat Pump 2H/2C with Aux/Emerg"), so it can drive an O/B reversing valve. What a heat pump needs from a thermostat.
Stages, per the maker: 2h/2c. Compare that with the W2 and Y2 wires at your wall. Reading stages from your wires.
Connectivity: Wi-Fi. It android, iOS, Amazon Alexa, Google Assistant.

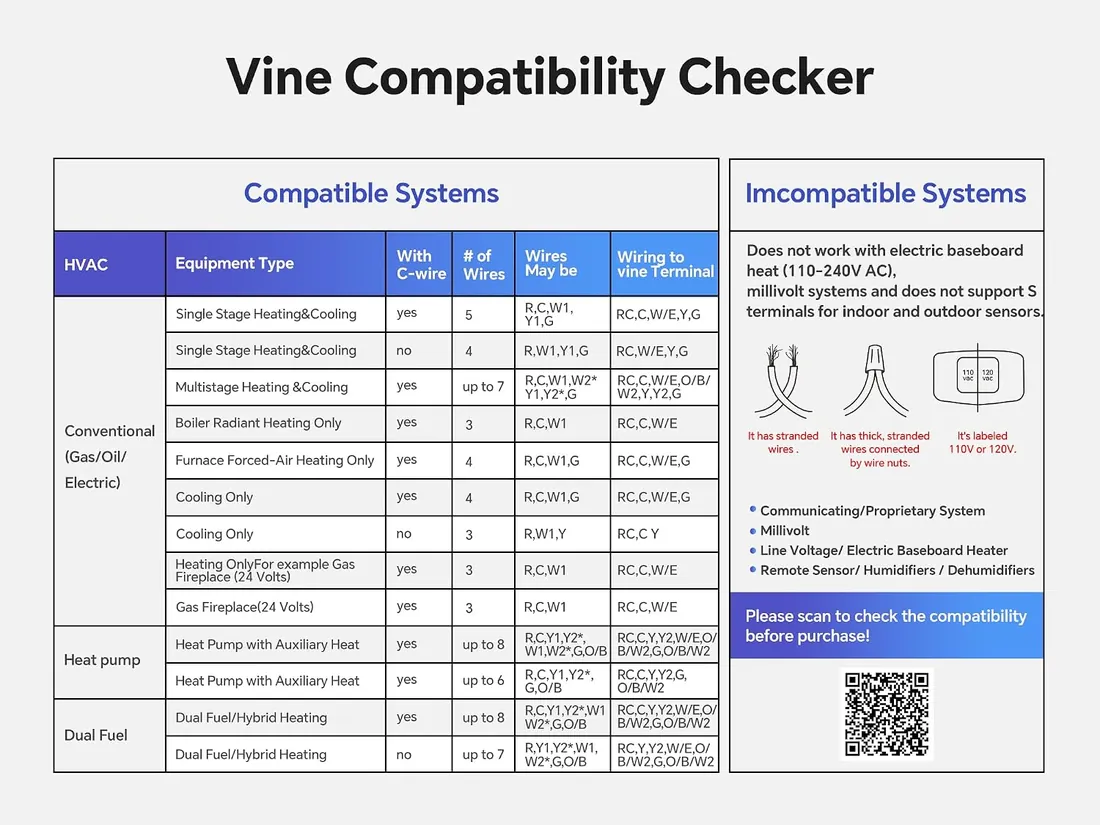

Tick your terminals in the wiring checker to see whether its maker's statements cover your system.
Also on the listing: dimensions of 0.9 in (D) x 3.5 in (W) x 3.5 in (H) and a lcd.
Compatibility and specs
These come from the maker's listing for this exact model; the source of each is marked. Anything the maker leaves out is marked not stated.
| Model number | TJ-560-3 | Retailer |
|---|---|---|
| Model name | TJ-560-3 | Retailer |
| Dimensions (seller) | 0.9"D x 3.5"W x 3.5"H | Retailer |
| Works with | Android, iOS, Amazon Alexa, Google Assistant | Retailer |
| Features (seller) | Fan Control, Geofence Technology, Lockable, Temperature Display, Vacation Mode | Retailer |
| Connectivity | Wi-Fi | Retailer |
| Power | Hardwired | Retailer |
| Display | LCD | Retailer |
| Mounting / installation | Wall Mount | Retailer |
| C-wire | A common wire (C-wire) is required for all vine thermostats | Retailer |
| Works with systems | compatible with 90% of 24V AC systems, including Conventional 2H/2C(Gas, Oil, Electric, Boiler) | Retailer |
| Heat / cool stages | 2h/2c | Retailer |
| Heat pump support | Heat Pump 2H/2C with Aux/Emerg | Retailer |
Strong points and weak points
Strong points
- Heat pump support stated
- Stages: 2h/2c
- Works with Android, iOS, Amazon Alexa, Go
Weak points
- Needs a C wire (maker)
- Needs Wi-Fi for smart features
Wiring and install notes
- Compatibility statements are the maker's own. Confirm with the maker's compatibility checker, turn the power off before wiring, and leave line-voltage and furnace work to a licensed electrician or HVAC technician.
Thermostats to compare it with
FAQ
Does the Vine TJ-560-3 Smart Thermostat need a C wire?
Does the Vine TJ-560-3 Smart Thermostat work with a heat pump?
Other smart thermostats with similar wiring
- Sensi ST75 Smart Thermostat
- Sensi 1F87U-42WF Smart Thermostat
- Vine TJ-919T Smart Thermostat
- LUX TX500E Smart Thermostat
All smart thermostats in one grid · Every Vine control listed
Our take
Suited to phone control and scheduling.
Where to get it
The link goes to this exact model's listing. Check that the box includes the trim plate or C-wire adapter you need, and confirm your wiring with the maker's compatibility checker before you order.
