Will it work with your system?
Works well with
- Simple, set-and-forget control
- Older wiring without a C wire
Check first if you have
- Phone or voice control
- Line-voltage baseboard heat
What it controls

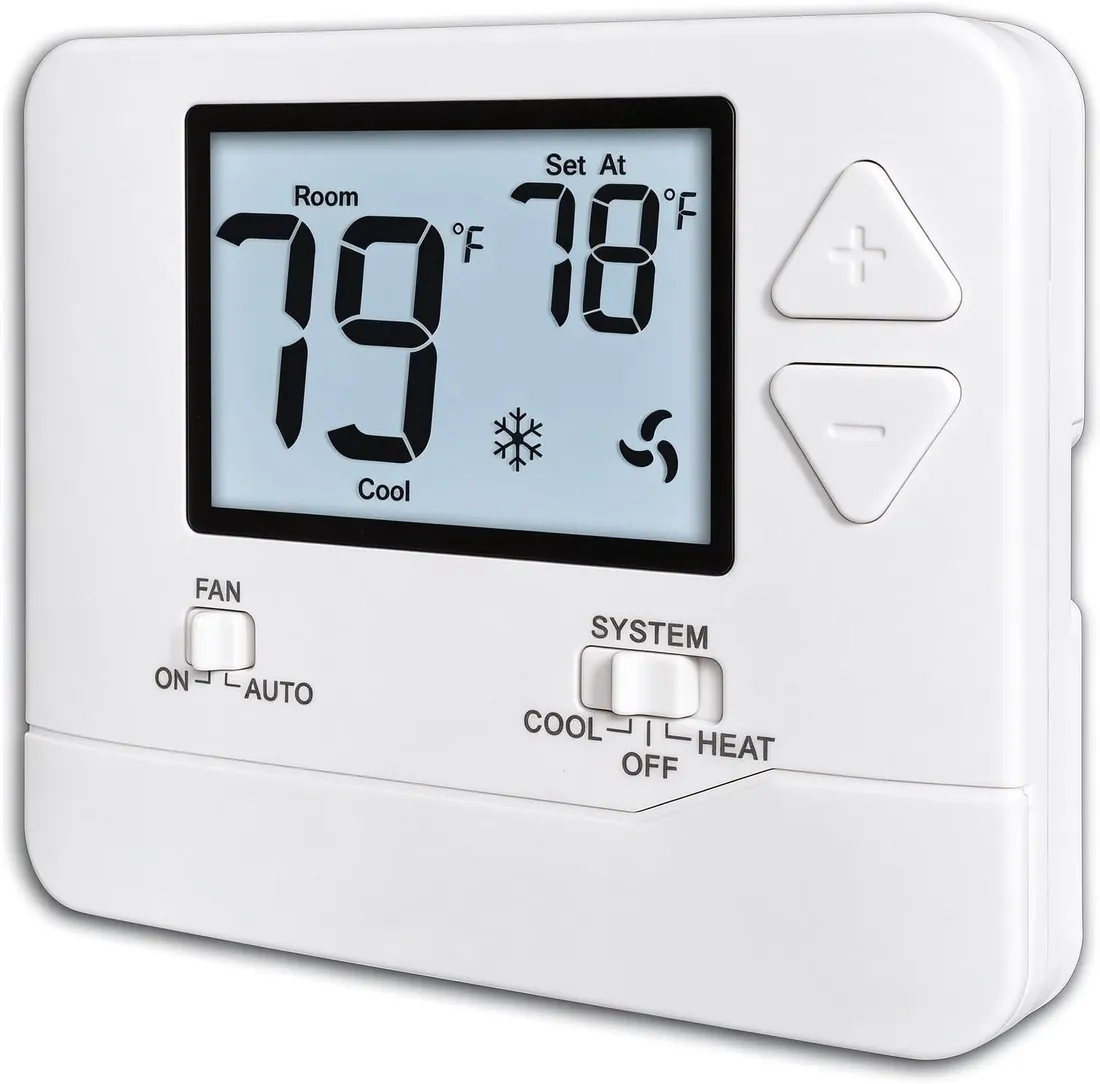

The Heagstat H701 Non-Programmable Thermostat is a non-programmable. Its listing doesn't spell out which heating and cooling systems it supports, so run the maker's compatibility checker before you buy.
Check your wall for a C terminal: its maker says no C wire is needed ("No C-Wire Required Design: Dual power supply design runs on 24VAC hardwired power or 2 AA"). The C wire guide covers adapters.
The listing doesn't state heat pump support; if you have an O/B wire, confirm with the maker before ordering. Heat pump wiring.

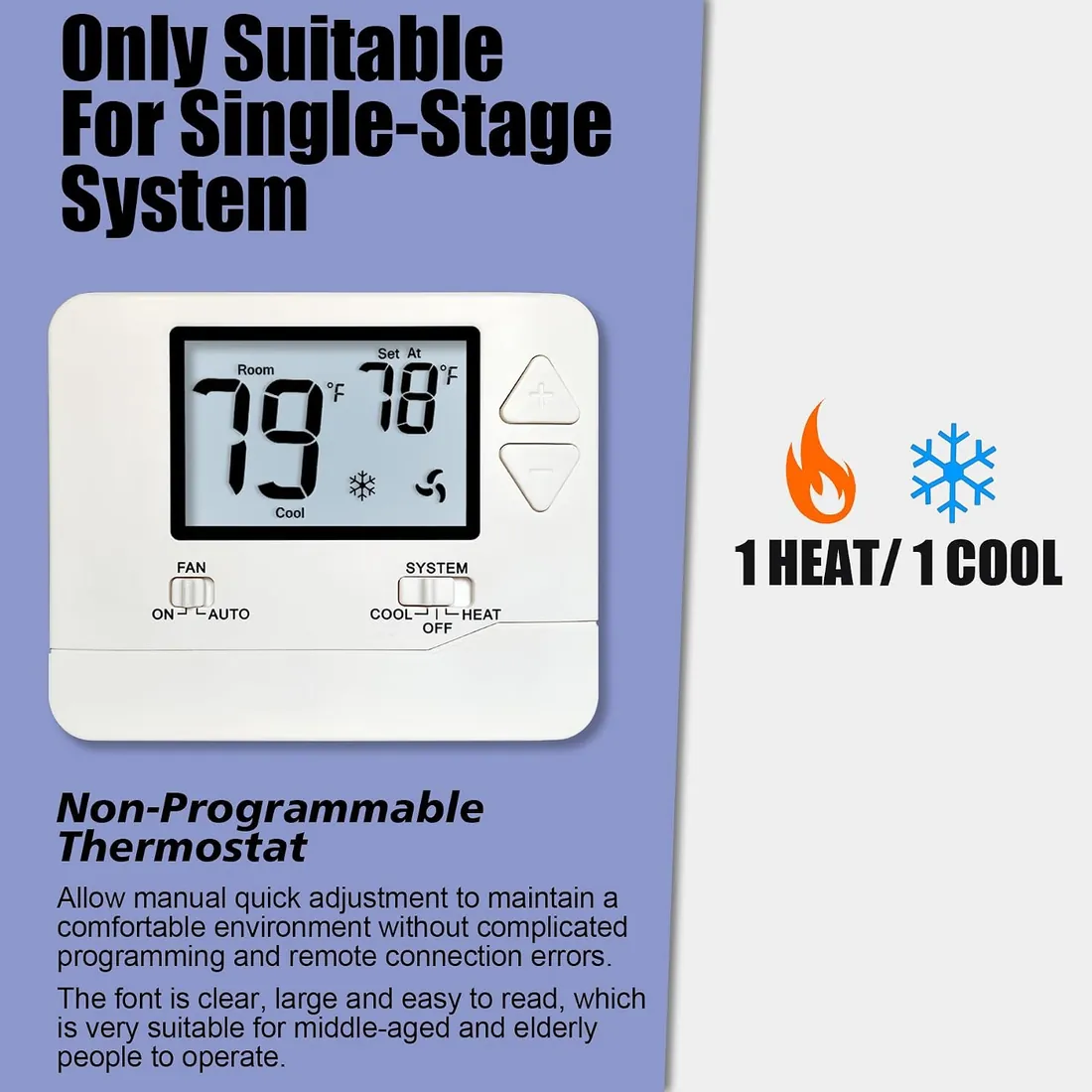

Stages, per the maker: single-stage. A second-stage wire (W2 or Y2) at your old thermostat needs matching support here. Single- and two-stage systems.
Schedule: Non-Programmable. Program sleep and away setbacks once and it runs them every week.
Power, per the listing: Battery Powered. Battery models often fit old two-wire circuits with no C wire.
Not sure of your wiring? The wiring checker reads your system from the terminal letters and checks it against this model's statements.

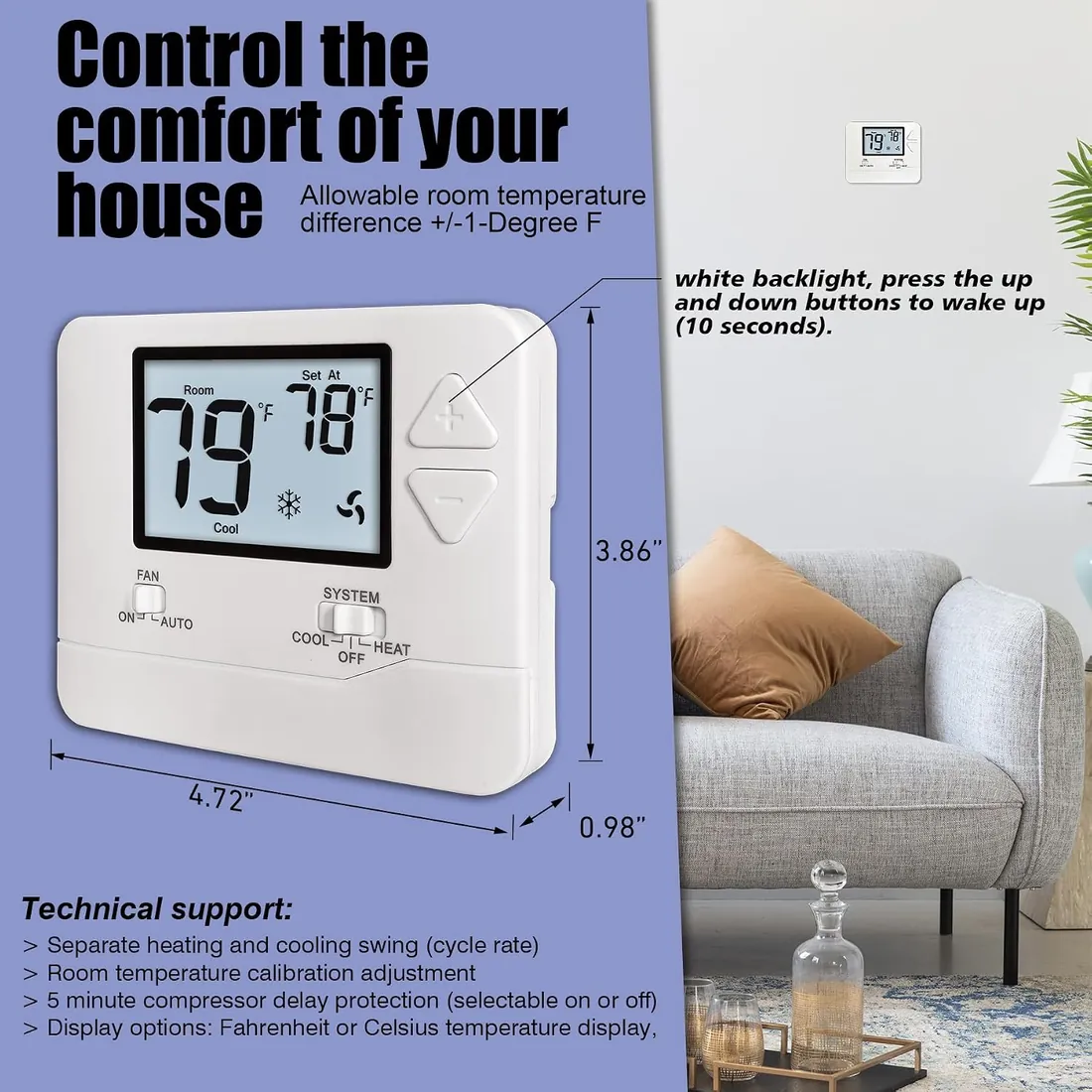

Also on the listing: dimensions of 0.98 in (D) x 4.72 in (W) x 3.86 in (H), a weight of 6.4 ounces and a lcd.
Compatibility and specs
These come from the maker's listing for this exact model; the source of each is marked. Anything the maker leaves out is marked not stated.
| Model number | H701 | Retailer |
|---|---|---|
| Model name | H701 Non-Programmable Thermosta | Retailer |
| Dimensions (seller) | 0.98"D x 4.72"W x 3.86"H | Retailer |
| Works with | Push Button | Retailer |
| Features (seller) | 5-minute adjustable compressor delay protection, Adjustable temperature swing: 0.2°F–2°F, Display range: 41°F–95°F; Control range: 44°F–90°F, Low Battery Indicator, Manual temperature calibration: -4°F ~ +4°F | Retailer |
| Connectivity | Terminal Designations RH, RC, G, Y, W, C | Retailer |
| Power | Battery Powered | Retailer |
| Voltage | 24 V | Retailer |
| Display | LCD | Retailer |
| Mounting / installation | Wall Mount | Retailer |
| Product weight | 6.4 ounces | Retailer |
| Material | Plastic | Retailer |
| C-wire | No C-Wire Required Design: Dual power supply design runs on 24VAC hardwired power or 2 AA | Retailer |
| Heat / cool stages | single-stage | Retailer |
| Schedule | Non-Programmable | Retailer |
Strong points and weak points
Strong points
- Non-Programmable
- Power: Battery Powered
- No Wi-Fi or account needed
Weak points
- No remote control
- Systems not stated
- Batteries to replace
Wiring and install notes
- Compatibility statements are the maker's own. Confirm with the maker's compatibility checker, turn the power off before wiring, and leave line-voltage and furnace work to a licensed electrician or HVAC technician.
Thermostats to compare it with
FAQ
Does the Heagstat H701 Non-Programmable Thermostat need a C wire?
What systems does the Heagstat H701 Non-Programmable Thermostat work with?
Other programmable and basic thermostats with similar wiring
Our take
Shortlist it for simple, set-and-forget control.
Where to get it
The link goes to this exact model's listing. Check that the box includes the trim plate or C-wire adapter you need, and confirm your wiring with the maker's compatibility checker before you order.
